Pro Chassis System, Delta 5®

In stock
SKU
21-163-04231-c
Starting at: $1,019.00

Details

The Daniel Defense Pro Chassis System gives marksmen a competitive option for their current DELTA 5 bolt-action rifle with polymer stock. This chassis is a drop-in replacement for the DELTA 5 Stainless Steel Action and Cold Hammer Forged Barrel. Designed for long-range competition— specifically the PRS production class— integral features give users a professional chassis solution without the professional price tag. With innovative features like the adjustable thumb rest, integral ARCA Rail and user-adjustable buttstock, the PRO Chassis System will not disappoint.

This Daniel Defense Pro Chassis System only accommodates DELTA 5 Actions. Mini-chassis will not accommodate 700-pattern actions.

MATERIALS & CONSTRUCTION

  • Chassis is CNC-Machined from 6061-T6 aluminum
  • Grip – Glass-infused polymer with soft touch overmolding
  • Comb (cheek piece) – Glass-infused polymer
  • Butt Pad – Rubber-like polymer

KEY FEATURES

  • CHASSIS BASE: Allows for the mechanical bedding of the action with a metal-on-metal design that protects against change in weather conditions
  • ATTACHMENT: M-LOK attachment at six positions along forend with one point on bottom of buttstock
  • QUICK DETACH: Ten sling swivel attachment points
  • INTEGRAL ARCA LOCK (RRS Spec): Continuous along the entire lower portion of rail
  • SCALLOPED CUT: Allows for lower height over bore even with scopes with large objective lenses
  • AR-15 GRIP ATTACHMENT: Interchangeable to accommodate the user’s preference of aftermarket grips
  • ERGONOMIC THUMB REST: Left / Right adjustability to accommodate the user’s preference
  • ADJUSTABLE BUTTSTOCK: Offers length of pull and butt pad height adjustments without the need for tools
  • ADJUSTABLE CHEEK RISER: For preferred height, yaw and drift
  • MAGAZINE: Accepts any AICS Short Action magazine
  • FINISH: Black Type III Hard Coat Anodized, Coyote Tan Cerakote or Olive Drab Cerakote

Specifications

More Information
Pro Chassis System Length 34"
Pro Chassis System Length of Pull 13.6" to 14.9"
Pro Chassis System Right/Left Handed Right Handed
Pro Chassis System Weight 5.2 lbs.
Folding Stock Non-folding
Manufacturer Daniel Defense

Features

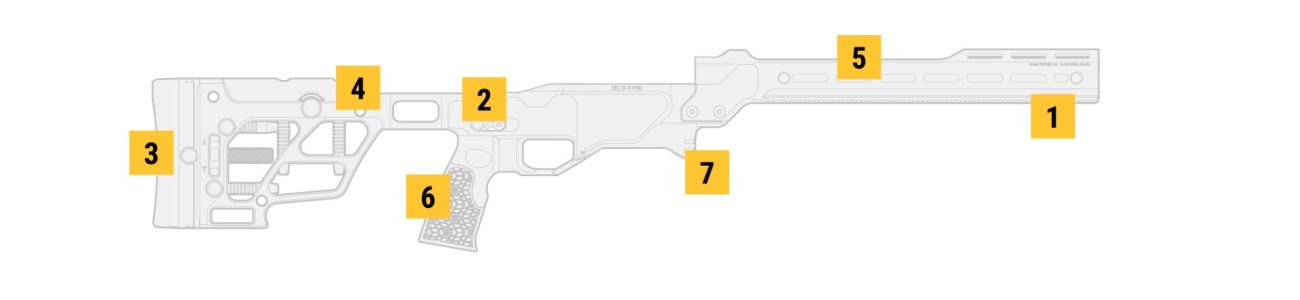

Pro Chassis System, Delta 5®
ARCA Lock
1

ARCA Lock

RRS compatible locking system extends the length of the forend and allows for accessory attachment

Thumb Rest
2

Thumb Rest

Left/right adjustment allows users to set at the desired position for optimal ergonomics

User-Configurable Stock
3

User-Configurable Stock

Allows for toolless adjustment of the comb’s height and yaw, length of pull and butt pad vertical adjustment

QD Points
4

QD Points

Integrated quick-disconnect points for the attachment of slings

M-Lok
5

M-Lok

Features M-LOK attachment technology

AR-15 Compatible Grip
6

AR-15 Compatible Grip

Ergonomic wrist angle and nonslip grip for comfort and control in all conditions

Barrier Stop
7

Barrier Stop

Prevents interference with the magazine and provides stability with surface contact
